    Magnetic Paint Thickness Tester Meter Gauge

    Product Details:

    Place of Origin: china
    Brand Name: L&D
    Certification: CE ISO SGS
    Model Number: TG-900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Standard Exporting Package
    Delivery Time: 3 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Application: Non-Magnetic Coating Layers Thickness Tester Operation Principle: Magnetic Induction & Eddy Current (F/NF)
    Measuring Range: 0-1250*0.001mm/0-50mil Minimum Measuring Area: 0.3mm/0.012"
    Power Supply: 4× 1.5V AAA Batteries Carrying Case: Yes
    Port: Shenzhen, China
    High Light:

    paint thickness tester meter gauge

    ,

    1.5V paint thickness gauge

    ,

    1.5V thickness gauge meter

    Product Description

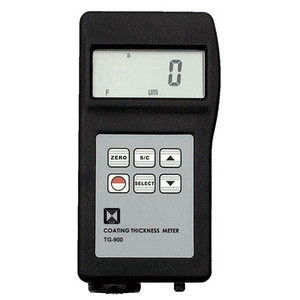

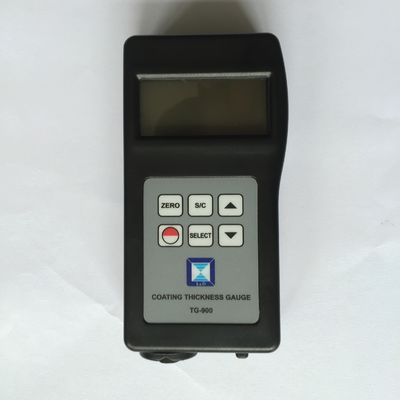

    Magnetic Paint Thickness Tester Meter Gauge



    Application
    1. TG-900F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
    2. TG-900N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
    3. TG-900FN: 2 in 1, F&N type


    Feature
    1. with built-in probe(s)
    2. Auto power off
    3. Magnetic induction or eddy current operation principle

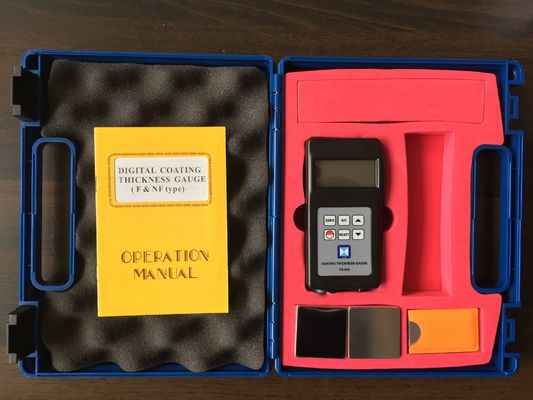

    Standard delivery
    Main unit
    F type probe
    N type probe
    F calibration base set
    N calibration base set
    Calibration foil set
    Carrying case
    1.5V AAA battery
    Optional Accessories
    Cable and software for RS-232C.



    Technical data

    Operation principle Magnetic induction & eddy current (F/NF)
    Measuring range 0-1250μ m/0-50mil
    Resolution 0.1μ m/1μ m
    Accuracy ± 1-3%N or 2.5μ m
    Minimum work piece diameter F: convex 1.5mm/0.06" , concave 25mm/0.98"
    NF: convex 3mm/0.12" , concave 50mm/1.97"
    Minimum measuring area diameter5mm/0.24"
    Minimum sample thickness 0.3mm/0.012"
    Power supply 4× 1.5V AAA batteries
    Dimension 124× 62× 30mm
    Weight 82kg



    Magnetic Paint Thickness Tester Meter Gauge 0

    Magnetic Paint Thickness Tester Meter Gauge 1
