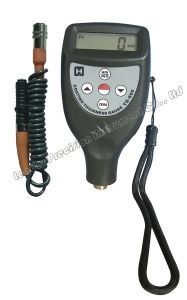

Paint Plastic 1.5V 0.012" Magnetic Coating Thickness Gauge
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | TG-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Application: | Rubber/Paint/Vanish/Plastic Anodic Oxide Layer Coa | Operation Principle: | Magnetic Induction & Eddy Current |
|---|---|---|---|
| Measuring Range: | 0-1.25mm/0-50mil | Minimum Work Piece Diameter F: | Convex 1.5mm/0.06" , Concave 25mm/0.98" |
| Minimum Work Piece Diameter NF: | Convex 3mm/0.12" , Concave 50mm/1.97" | Minimum Measuring Area: | Diameter 6mm/0.24" |
| High Light: | 0.012" Magnetic coating Thickness Gauge,1.5V Magnetic coating Thickness Gauge,0.012" Plastic paint thickness tester |
||
Product Description
Paint Plastic 1.5V 0.012" Magnetic Coating Thickness Gauge
Rubber/Paint/Vanish/Plastic Anodic Oxide Layer Coating Thickness Gauge (TG-600)
Feature & Advantage
1. with separate probe(s)
2. Auto power off
3. Magnetic induction or eddy current operation principle
Standard delivery for TG-600FN
Main unit
F type probe
N type probe
F calibration base set
N calibration base set
Calibration foil set
Carrying case
1.5V AAA battery
Optional Accessories
Cable and software for RS-232C
Application
1. TG-600F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-600N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
3. TG-600FN: 2 in 1, F&NF type.
Specification
| Operation principle | Magnetic induction & eddy current |
| Measuring range | 0-1250μm/0-50mil |
| Resolution | 0.1μm/1μm |
| Accuracy | ± 1-3%N or 2.5μm |
| Minimum work piece diameter | F: convex 1.5mm/0.06" , concave 25mm/0.98" NF: convex 3mm/0.12" , concave 50mm/1.97" |
| Minimum measuring area | diameter 6mm/0.24" |
| Minimum sample thickness | 0.3mm/0.012" |
| Power supply | 4× 1.5V AAA batteries |
| Dimension | 126× 65× 27 |
| Weight | 82g |
