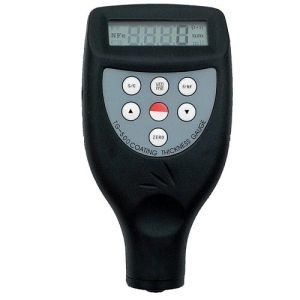

Hydraulic 0.001mm 5V Coating Thickness Meter TG-500
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE ISO SGS |
| Model Number: | TG-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard Exporting Package |
| Delivery Time: | 3 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Application: | Steel, Iron, Alloy And Magnetic Stainless Steel | Operation Principle: | Magnetic Induction & Eddy Current |
|---|---|---|---|
| Measuring Range: | 0-1.250 Mmm/0-50mil | Accuracy: | ± 1-3%N Or 2.5*0.001mm |
| Minimum Work Piece Diameter F: | Convex 1.5mm/0.06" , Concave 25mm/0.98" | Minimum Work Piece Diameter NF: | Convex 3mm/0.12" , Concave 50mm/1.97" |
| Minimum Measuring Area: | Diameter 6mm/0.24" | Minimum Sample Thickness: | 0.3mm/0.012" |
| High Light: | 5V Coating Thickness Meter,Coating Thickness Meter TG 500,0.001mm 5V Coating Thickness Meter |
||
Product Description
Hydraulic 0.001mm 5V Coating Thickness Meter TG-500
Application
1. TG-500F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-500N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)
3. TG-500FN: 2 in 1, F&N type
Hydraulic temperature sensor / Coating Thickness Meter
1. with built-in probe(s)
2. Auto power off
3. Magnetic induction or eddy current operation principle
Standard delivery for TG-500
- Main unit
- F type probe
- N type probe
- F calibration base set
- N calibration base set
- Calibration foil set
- Carrying case
- 1.5V AAA battery
- Optional Accessories
- Cable and software for RS-232C
Specification
| Operation principle | Magnetic induction & eddy current |
| Measuring range | 0-1250μ m/0-50mil |
| Resolution | 0.1μ m/1μ m |
| Accuracy | ± 1-3%N or 2.5μ m |
| Minimum work piece diameter | F: convex 1.5mm/0.06" , concave 25mm/0.98" NF: convex 3mm/0.12" , concave 50mm/1.97" |
| Minimum measuring area | diameter 6mm/0.24" |
| Minimum sample thickness | 0.3mm/0.012" |
| Power supply | 4× 1.5V AAA batteries |
| Dimension | 126× 65× 27 |
| Net Weight | 82kg |
