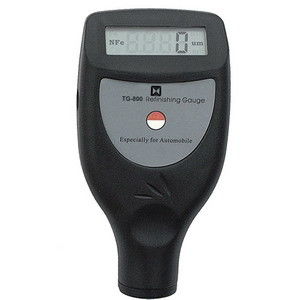

Industry TG800 Coating Thickness Gauge for Automobile
Product Details:
Place of Origin: | china |
Brand Name: | L&D |
Certification: | CE ISO SGS |
Model Number: | TG-800 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | negotiation |
Delivery Time: | 3 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50, 000PCS/Year |
Detail Information |
|||
Name: | Coating Thickness Tester | Application: | Designed For Car Industry |
---|---|---|---|
Operation Principle: | Magnetic Induction & Eddy Current (F/NF) | Cable And Software For RS-232c: | Yes |
Minimum Measuring Area: | Diameter 6mm/0.24" | Minimum Sample Thickness: | 0.3mm/0.012" |
Power Supply: | 4*1.5V AAA Batteries | Dimension: | 126* 65* 27mm |
Weight: | 82kg | Trademark: | Leader |
Transport Package: | Standard Exporting Package | Specification: | SGS |
Origin: | Guangdong | HS Code: | 9031809090 |
Port: | Shenzhen, China | ||
High Light: | 0.3mm Magnetic Thickness Gauge,TG800 Magnetic Thickness Gauge,Industry paint thickness meter |
Product Description
Industry TG800 Coating Thickness Gauge for Automobile
Coating Thickness Series:
1. Designed for Car industry
2. with built-in probe(s) or separate probe
3. Auto power off
4. Magnetic induction or eddy current operation principle
Standard delivery for TG-800FN:
Main unit
F type probe
N type probe
F calibration base set
N calibration base set
Calibration foil set
Carrying case
1.5V AAA battery
Optional Accessories
Cable and software for RS-232C.
1. Designed for Car industry
2. with built-in probe(s) or separate probe
3. Auto power off
4. Magnetic induction or eddy current operation principle
Standard delivery for TG-800FN:
Main unit
F type probe
N type probe
F calibration base set
N calibration base set
Calibration foil set
Carrying case
1.5V AAA battery
Optional Accessories
Cable and software for RS-232C.
Operation principle | Magnetic induction & eddy current (F/NF) |
Measuring range | 0-1250μ m/0-50mil |
Resolution | 0.1μ m/1μ m |
Accuracy | ± 1-3%N or 2.5μ m |
Minimum work piece diameter | F: convex 1.5mm/0.06" , concave 25mm/0.98" NF: convex 3mm/0.12" , concave 50mm/1.97" |
Minimum measuring area | diameter 6mm/0.24" |
Minimum sample thickness | 0.3mm/0.012" |
Power supply | 4× 1.5V AAA batteries |
Dimension | 126× 65× 27 |
Weight | 82kg |
