• LB-200 Portable Leeb Hardness Tester
  • LB-200 Portable Leeb Hardness Tester

    LB-200 Portable Leeb Hardness Tester

    Product Details:

    Place of Origin: CHINA
    Brand Name: HARDRULER
    Certification: CE
    Model Number: LB-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Standard exporting package
    Delivery Time: 3 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Measuring Range: HLD Application: Metal
    Standard: ISO, ASTM, GB/T Calibrating Method: Standard Hardness Test Blocks
    Model: Lb-200 Hardness Scales: Hl, Hrb, HRC, Hv, Hb, Hs
    Measuring Range/Metallic Materials: 200 ~ 900 Hld Accuracy: 0.8 % (Hld=800)
    Statistics: Average Value Impact Device: D(Standard Type)
    Workpiece Radius (Convex/Concave): Rmin=50mm(with Support Ring Rmin=10mm) Origin: China
    HS Code: 9024102000 Port: Shenzhen, China
    High Light:

    LB200 Portable Leeb Hardness Tester

    ,

    0.8mm Portable Leeb Hardness Tester

    ,

    HRB hardness test apparatus

    Product Description

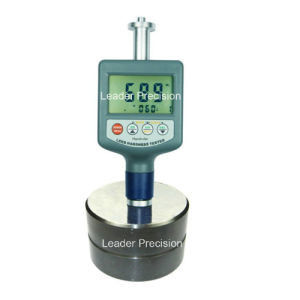

    LB-200 Portable Leeb Hardness Tester



    Usage

    Measure the hardness of metal workpiece.

    Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts

    on a production line.

    Features
    Impact device D integrated
    Wide measuring range in HL and direct display of converted hardness values in HRB, HRC, HV, HB and HS
    For most metals (see table)
    Provide testing at any angle, even upside down
    High accuracy tolerance of maximum 0.8% on solid parts
    Backlight LCD display showing all functions and parameters
    Data output RS-232C
    Optional printer available
    Low battery indication
    Auto-off after three minutes



    Specification

    Name

    Portable Leeb Hardness tester

    Model

    LB-200

    Hardness scales

    HL, HRB, HRC, HV, HB, HS

    Measuring range/metallic materials

    200 ~ 900 HLD

    Accuracy

    ± 0.8 % (HLD=800)

    Statistics

    Average value

    Memory

    50 groups

    Output

    RS-232C

    Impact device

    D(standard type)

    Workpiece radius (convex/concave)

    Rmin=50mm(with support ring Rmin=10mm)

    Workpiece minimum weight

    2.5kgon solid support(0.1kg with couplant paste)

    Workpiece min. thickness coupled

    3mm

    Workpiece min.case hardned depth

    0.8mm

    Power

    2*AAA battery 1.5V

    Operating temperature

    0ºC-50ºC

    Humidity:

    ≤ 90 %

    Dimension

    145 × 66 × 36 mm

    Weight

    130g



    LB-200 Portable Leeb Hardness Tester 0


    LB-200 Portable Leeb Hardness Tester 1



    LB-200 Portable Leeb Hardness Tester 2
