    LB-800 Portable Leeb Digital Hardness Tester with Aluminum Alloy outer casing

    Product Details:

    Place of Origin: CHINA
    Brand Name: HARDRULER
    Certification: CE ISO SGS
    Model Number: LB-800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiation
    Packaging Details: Standard exporting package
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50, 000PCS/Year
    Get Best Price Contact Now

    Detail Information

    Measuring Range: HLD Application: Metal
    Standard: ISO, ASTM, GB/T Hardness Scales: Hl, Hrb, HRC, Hv, Hb, HS
    Measuring Range/Metallic Materials: 200 ~ 900 Hld Accuracy: 0.8 % (Hld=800)
    Statistics: Average Value Memory: 50 Groups
    Output: RS-232c Impact Device: D(Standard Type)
    Workpiece Radius (Convex/Concave): Rmin=50mm(with Support Ring Rmin=10mm) HS Code: 9024102000
    Port: Shenzhen, China
    High Light:

    LB200 Digital Hardness Tester

    ,

    digital leeb hardness tester

    ,

    leeb portable hardness tester

    Product Description

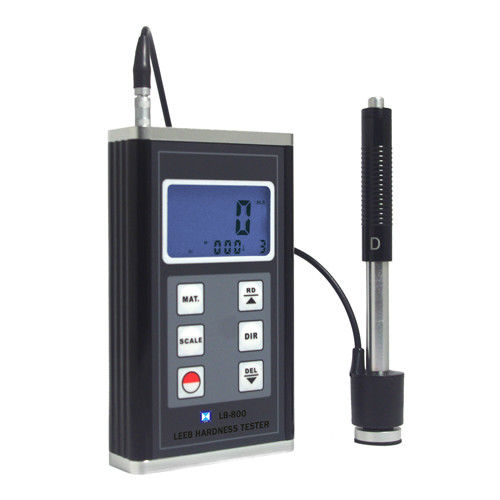

    LB-800 Portable Leeb Digital Hardness Tester with Aluminum Alloy outer casing

    LB-800 Portable Leeb Digital Hardness Tester with Aluminum Alloy outer casing



    Applications


    Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.


    Features & Advantage
    • Palm size for narrow space.
    • Test at any angle, even upside down.
    • Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
    • Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
    • User recalibration function allowed.
    • Can communicate with PC computer for statistics and printing by the optional cable.
    • Manual or automatic shut down.
    • Low battery indication.



    Technical data

    Product name Portable Leeb Hardness tester
    Model LB-800
    Case Material Aluminum Alloy
    Display LCD
    Materials 9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper )
    Measuring range 170~960(HLD)
    Accuracy Display Error±0.8%
    Repeatability ±0.6%
    Conversion HL-HRC-HRB-HB-HV-HSD
    Memory 50Data Can Be Stored And Re-readable
    Impact device D(standard type)Probe D,Weight:75g
    Power 2X1.5V AA(UM-3)Battery
    Storage Temperature -30ºC~60ºC
    Operating temperature -10ºC~50ºC
    Humidity ≤90 %RH
    Dimension 130x76x32mm
    Weight 340g(Not Including Batteries)



    Standard delivery

    Main unit Standard Test Block Small Support Ring
    Cleaning brush Carrying case Instruments certificate
    Installation & user manual
